- This pack contains:
- Grey aluminum sliding gate
- 2 aluminum posts, 240cm high
- Post dimensions: 15x15cm

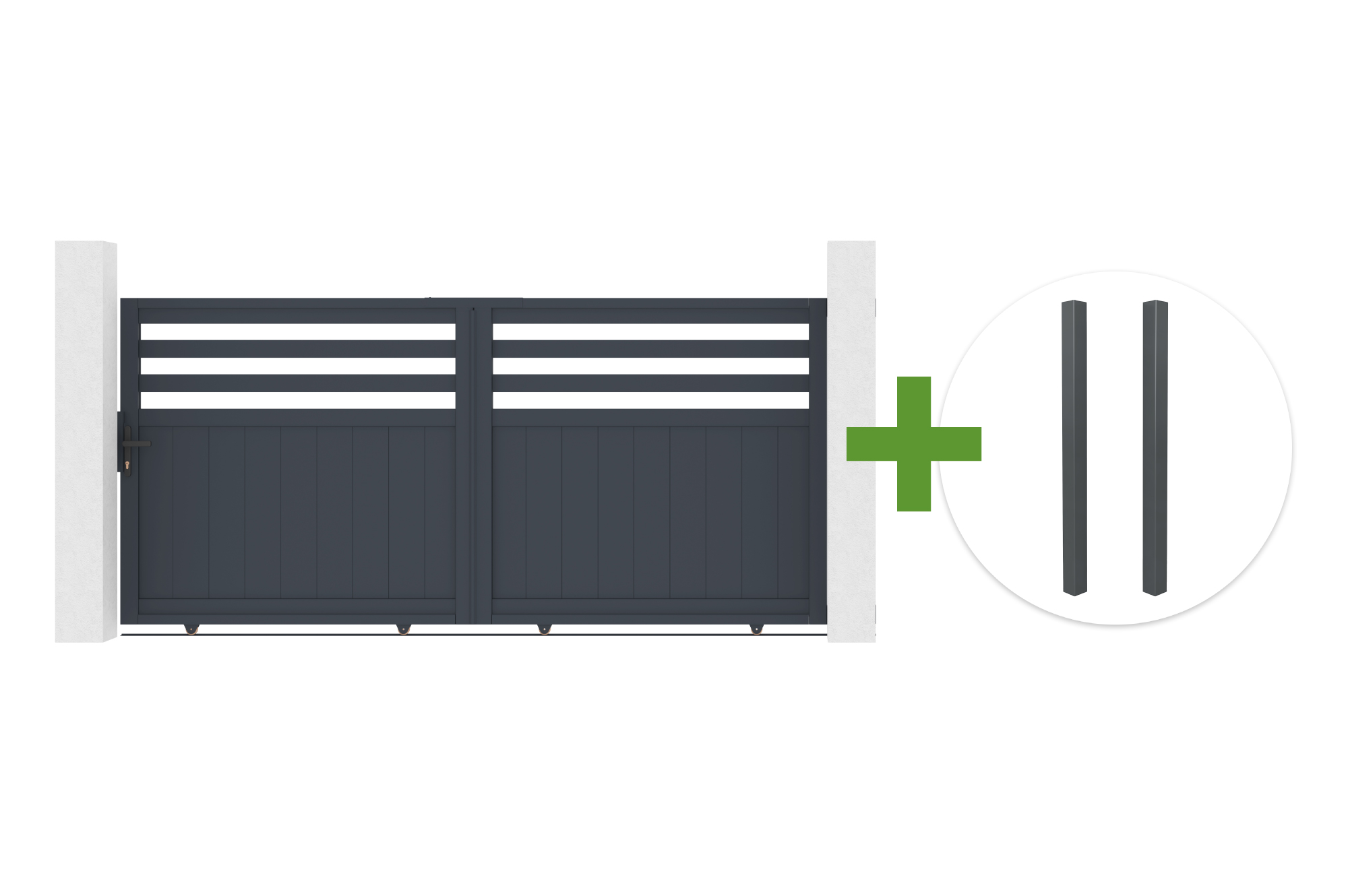

3m NEVIS sliding gate, 140cm high, grey aluminum + 2 ELDA grey aluminum posts, 15x15cm
PAC-004363
1948 €TVA 10% ✓
FREE delivery between 04/09 and 09/09
- This pack contains:
- Grey aluminum sliding gate
- 2 aluminum posts, 240cm high
- Post dimensions: 15x15cm
Secure payment
Delivery within 5 days
Free shipping
3m NEVIS sliding gate, 140cm high, grey aluminum + 2 ELDA grey aluminum posts, 15x15cm
1948 €
-5%
between 0 € and 1499.99 €*
-7%
between 1500 € and 2999.99 €*
-10%
greater than 3000 €*
*HT orders
Description
Sliding gate kit 3m NEVIS H.140cm grey aluminium
Need a sliding gate that offers both light and style? Discover the NEVIS range.
The NEVIS semi-openwork sliding gate stands out thanks to its style, which combines both modernity and lightness. Its openwork horizontal slats on the top allow optimal light circulation while preserving privacy …
Set of 2 ELDA posts 15x15cm aluminum H.240cm anthracite gray
The ELDA 15x15cm aluminum posts are designed to offer strength, durability, and elegance for your aluminum gate and pedestrian gate installations. With a total height of 240cm and a thickness of 3mm, these posts guarantee optimal stability for gates up to 160cm high.
Made of …
Sliding gate kit 3m NEVIS H.140cm grey aluminium
Need a sliding gate that offers both light and style? Discover the NEVIS range.
The NEVIS semi-openwork sliding gate stands out thanks to its style, which combines both modernity and lightness. Its openwork horizontal slats on the top allow optimal light circulation while preserving privacy at the bottom. Designed to perfectly complement a modern exterior, this aluminum sliding gate combines elegance and practicality for a result that is both refined and functional.
Sliding Gate: Suitable for large openings and difficult terrain
The sliding gate is designed to adapt to a wide variety of configurations, particularly sloping entrances or tight spaces. With a side opening, it allows for optimal space savings while facilitating vehicle access. Our sliding gates offer great durability with minimal maintenance. By adding a sliding gate motor, you benefit from complete automation, making the use of your motorized sliding gate even more convenient and seamless on a daily basis.
This sliding gate has a wind resistance of 55 km/h.
Material: Aluminum
Color: Anthracite Gray - RAL 7016
Dimensions: Width 300 cm x Height 140 cm
Required width between posts: 305 cm
Minimum post height: 160 cm
Inspired and designed in France
- 4 horizontal bars (Length 140 cm)
- 18 powder-coated slats (Width 15.5 cm)
- 1 upper guide with 4 nylon rollers
- 6 m steel guide rail
- 4 steel rollers
- 1 receiving strike plate
- 1 receiving stop
- 1 cylinder lock
- 1 handle (Black)
- 5 keys
- Finishing caps
- Screws
About the Material
Aluminum is attractive for its lightness and ease of use, making it easy to install on all types of terrain. A modern material, it offers a wide range of designs and colors to complement your exterior. Resistant to impacts and climatic variations, it remains intact over time. By choosing aluminum, you benefit from a versatile, customizable, and durable design to enhance your outdoor space.
Need posts?
Posts are not included in our kits, as they are not necessary if you already have exterior pillars or posts for installing your product.
If you need pillars, we offer promotional packs that include the product of your choice with two suitable posts.
To ensure a safe and stable installation of your sliding gate, the posts must be at least 160 cm high and at least 15 cm wide.
How should I maintain my aluminum structure?
Aluminum requires little maintenance, but regular cleaning extends its lifespan. Once or twice a year, simply use warm soapy water and a soft cloth, then rinse and dry thoroughly. Avoid abrasive products and high-pressure cleaning, which can damage the lacquer.
Need help choosing your sliding gate?
Contact our customer service via our online form.
Product delivered in kit form
Clear instructions
Quick and easy assembly
Find all the necessary information about this product in the Technical specifications
Download the instructionsSet of 2 ELDA posts 15x15cm aluminum H.240cm anthracite gray
The ELDA 15x15cm aluminum posts are designed to offer strength, durability, and elegance for your aluminum gate and pedestrian gate installations. With a total height of 240cm and a thickness of 3mm, these posts guarantee optimal stability for gates up to 160cm high.
Made of Qualicoat-certified powder-coated aluminum, they are highly resistant to corrosion and weathering. Their anthracite gray color (RAL 7016), with a matte sandblasted finish, harmonizes with all CASANOOV aluminum gates and pedestrian gates for a modern and refined look.
These posts are designed for installation in concrete (without a base plate), ensuring a robust and durable fixing, even for motorized installations.
They are compatible with all our aluminum gates and pedestrian gates up to 160cm, as well as with all CASANOOV motors, for simple and reliable installation.
- 2 aluminum posts
- 2 aluminum post caps
- Galvanized steel screws included
- Clear assembly instructions
Important: This kit does not include a base or mounting plate. It must be set in the ground with a minimum of 50 cm of concrete to ensure maximum stability.
The finishing cap is easy to install and remove, allowing for the passage of electrical cables for motorization or the addition of accessories (photocells, flashing lights, etc.).
Maintenance: Simply cleaning with soapy water is all that is needed to preserve the shine and color of your post.
For this product
Clear instructions
Quick and easy assembly
Find all the necessary information about this product in the Technical specifications
Download the instructionsTechnical data
-
Supplied accessories
Yes
-
Recommended number of persons for assembly
2
-
Compatible engines
Yes
-
Thickness of the blades
1.2 mm
-
Assembly instructions
Yes
-
Compatible motorization type
sliding
-
Sleeper thickness
2 mm
-
Required pillar height
160 cm
-
Pattern / Design
NEVIS
-
Sleeper Section
77*30 mm
-
RAL
7016
-
Type of lock
4 Keys
-
Finishing
mast
-
Amounts Section
78*47 mm
-
Width between pillars
303 cm
-
Eligibility Extended warranty 5 years
No
-
Assembly time
8 h
-
Stud thickness
1.4 mm
-
Width
303 cm
-
Required discharge length
3 m
-
Warranty
2 an(s)
-
Type of filling
half openworked
-
Eligibility Extension of warranty 10 years
No
-
Height
145 cm
-
Length of steel rail
6 m
-
Operating clearance
26 mm
-
Stud/rail assembly
Self-drilling screws
-
Number of casters
4
-
Length of the tail of the sliding gate
25.4 cm
-
Guide system
Upper guide with 4 nylon olives
-
Opening direction
left to right/right to left
-
Frame material
Aluminium
-
Main material
Aluminium
-
Colour
Charcoal grey
-
Handle colour
Black
-
Opening system
Sliding
-
Locking system
Barrel lock
-
Rod assembly
Self-drilling screws
-
Handle material
Aluminium
-
Wind resistance
55 km/h
-
Exists by beating
Yes
-
RAL
7016
-
Section
15*15 cm
-
Main material
Aluminum
-
Finishing
Powder coating
-
Hat size
15*15 cm
-
Type of installation
To be sealed
-
Width
15 cm
-
Warranty
2 an(s)
-
Screws included
Yes
-
Height
240 cm
-
Colour
Charcoal grey
-
Mounting plate included
No
-
Notice
Yes
-
Thickness
3 mm
-
Installation type
To be sealed
Questions from our customers
All our products have a 2-year commercial warranty.
All our products are delivered in kit form and to be assembled by you.
We have designed and imagined our products so that they are easy to assemble, and your customer experience is pleasant.
We have provided you with clear assembly instructions that you can download.
All the accessories necessary for the installation of your portal are provided to you, and everything that is included in our portals is specified in the technical characteristics of the product as well as in the description.
You can find all this information on each of our product sheets through these different tabs:
- In the “Technical characteristics” tab
- In the “Technical drawing” tab
- In the “Assembly instructions” tab
If, upon receipt and assembly of your products, you have any questions about the installation, you can always contact us through the Casanoov contact form.
For orders where all products are advertised as "In stock", we do our best to prepare your order in less than 24 hours.
Delivery times are communicated to you on each of our product sheets.
- To do this, look for the model you want, you will then find its product sheet:
- The delivery time will be notified directly on the product sheet, next to the add to cart button
For orders with products "in reservation", preparation and delivery take place at the time of the effective return to stock.
We offer you in full consciousness a longer delivery time to allow you to receive your entire order in a grouped manner.
You are advised to place two different orders if you wish to receive the products in stock more quickly and place a second order with the products for which we are awaiting stock.
Our delivery costs are free, so this will have no impact on your final cost.
You can contact us via the contact form, section "Question about a product". We will do our utmost to provide you with all the help you need and to answer your questions about our articles.
A Question/Answer system will be set up very quickly on each of our products so that your questions can also help the Casanoov community in their choice!
