Compatible pillar spacing
101 - 104 cm
Wind resistance
55 km/h
Height
176 cm
Width
100 cm
Main material
Aluminium
Colour
Charcoal grey
RAL
7016
Finishing
Sand mat
Type of filling
half openworked
Pattern / Design
Honeycomb
Compatible pillar spacing
101 - 104 cm
Wind resistance
55 km/h
Height
176 cm
Width
100 cm
Main material
Aluminium
Colour
Charcoal grey
RAL
7016
Finishing
Sand mat
Type of filling
half openworked
Pattern / Design
Honeycomb
Opening direction
Opening to the left, swinging towards the house
Compatible engines
Yes
Compatible motorization type
With articulated arms and jacks
Frame material
Aluminium
Width between pillars
103 cm
Minimum pillar height
190 cm
Operating clearance
15 mm
Pivoting system
Ball bearing
Blade section
155*15 mm
Thickness of the blades
1.2 mm
Amounts Section
78*47 mm
Stud thickness
1.4 mm
Sleeper Section
70*30 mm
Sleeper thickness
1.2 mm
Stud/rail assembly
Self-tapping screws
Type of lock
Keys (5)
Locking system
Cylinder lock
Handle material
Aluminium
Rod assembly
Self-tapping screws
Supplied accessories
Yes
Adjustable installation accessories
Yes
Number of upper hinges
1
Number of lower hinges
1
Number of end stops
1
Top cover cap
Yes
Assembly instructions
Yes
Assembly time
3 h
Recommended number of persons for assembly
2
Warranty
2 an(s)
Eligibility Extended warranty 5 years
No
Eligibility Extension of warranty 10 years
No
Weight of package No.1
21.9 kg
Weight of package No.2
4.0 kg
The TRIGLAV garden gate with its graphic design will bring modernity and elegance to your entrance, courtyard,...
Description : Modern pedestrian gate with vertical decorative panel
Material: Aluminium
Colour: Anthracite grey (RAL 7016)
Type of pattern : "Geometric"
Dimensions: Width 100 cm x Height 176 cm

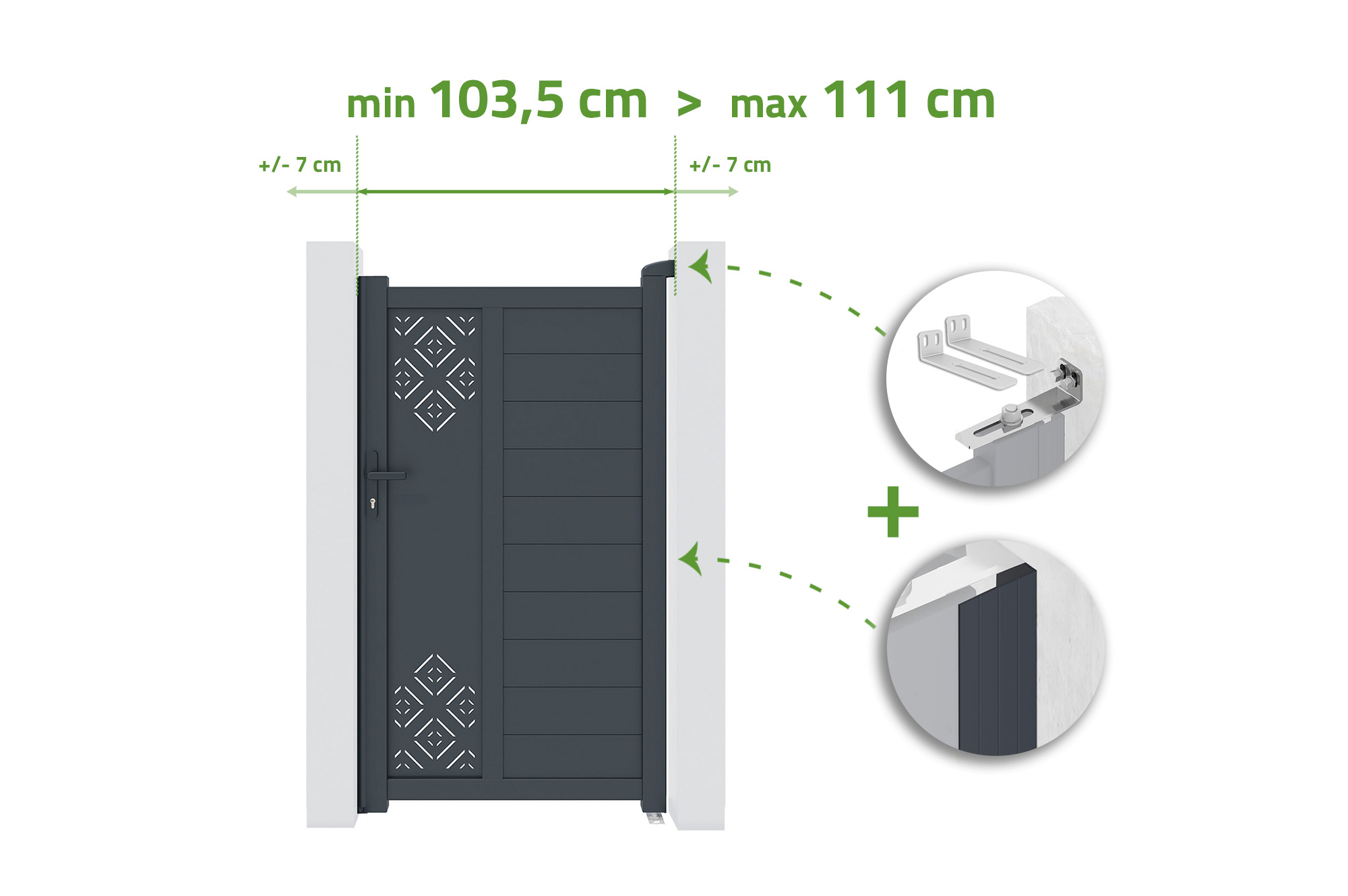

Required width between pillars: 103 cm
Minimum height of pillars: 190 cm
Inspired and designed in France
This do-it-yourself modern wicket gate kit with laser design contains :
- 9 powder coated slats (Height 16 cm)
- 1 reinforced powder coated slat for motorisation (Height 16 cm)
- 1 decorative aluminium panel with "Geometric" pattern (thickness 20/100)
- 1 upper hinge
- 1 bottom hinge
- 1 reception stop
- 1 sash lock
- 1 double handles (Black colour)
- Set of 5 keys
- Finishing caps
- Screws and bolts
If your installation requires pillars, Casanoov offers promotional packages in the "Side Gate" category.
These packs contain one aluminium pedestrian gate of your choice, together with two aluminium posts to suit the chosen garden gate.
The TRIGLAV model is also available in other sizes and colours.
For a harmonious exterior, we propose matching swing gates, sliding gates and fences.
To further adapt your side gate to your project, all our wicket gates can be cut to width, for example for a narrower entrance.
And for even more customisation, you can change the direction or position of the decorative plates.
Pedestrian gate delivered in kit form.
Clear instructions, quick and easy assembly.
You will find all the necessary information about this product in the technical data.
Download the assembly instructions (PDF)
